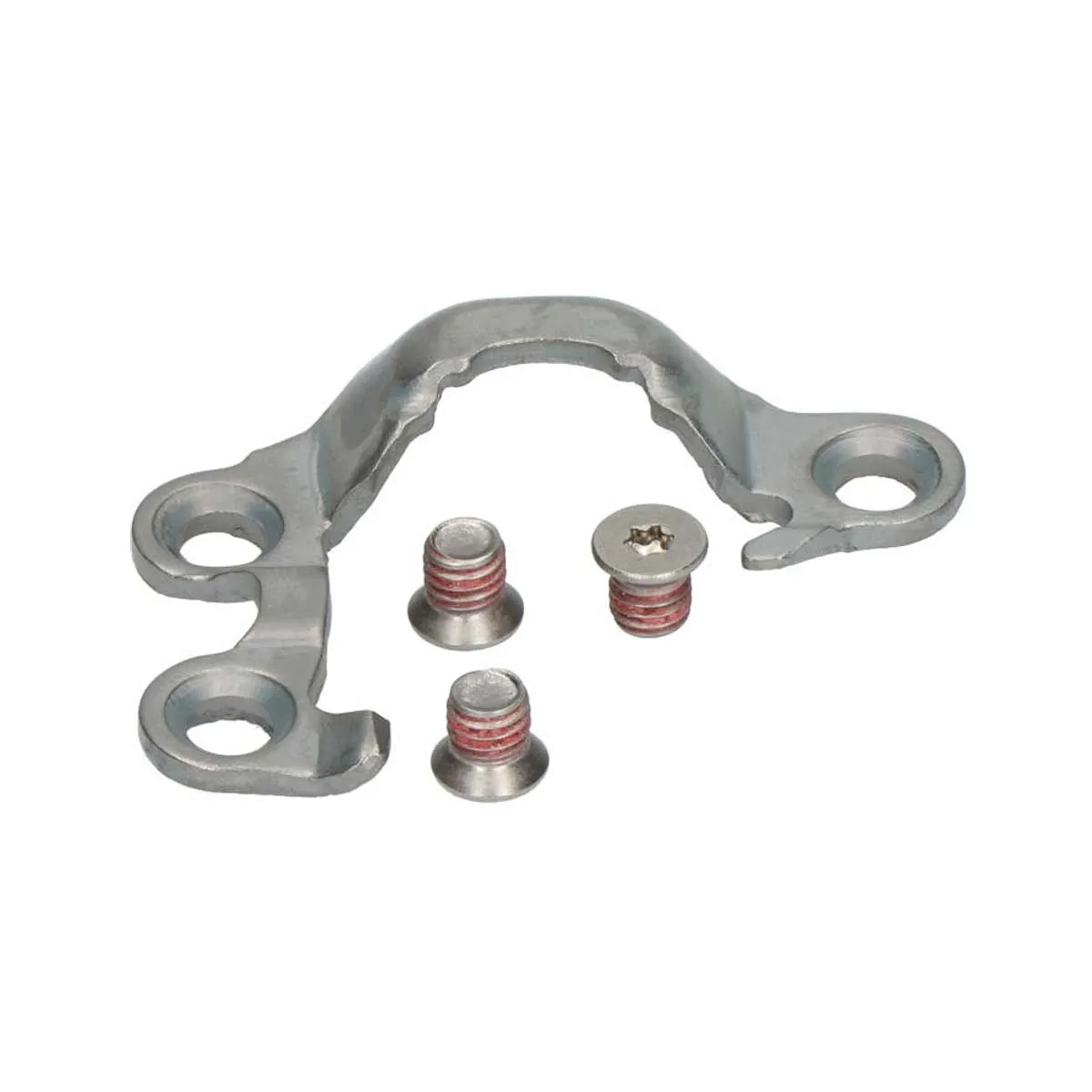

Ersatzteil für Shimano XTR Pedale

Aufstandsplatte links mit Befestigungsschrauben für das Body Cover, left, und Fixing Bolts, Hexalobular #10,

Komplatibel mit den XTR Clickpedalen:

• PD-M980
• PD-M985
• PD-M9000
• PD-M9100
• PD-M9200
• PD-M9020
• PD-M9120
• PD-M9220

Shimano XTR PD-M9000 Pedale Ersatzteile:

• Nr 1, Art Nr, Y46X98050 Pedal Axle Assembly, Right / B.C.9/16 x 20T.P.I.
• Nr 1, Art Nr, Y46X98020 Pedal Axle Assembly, Left / B.C.9/16 x 20T.P.I.
• Nr 2, Art Nr, Y46X98030 Lock Bolt, Right
• Nr 2, Art Nr, Y46X98040 Lock Bolt, Left
• Nr 3, Art Nr, Y41N98030 Steel Ball, 3/32, 62 pcs.
• Nr 4, Art Nr, Y46F98050 Body Cover, Right, und Fixing Bolts, Hexalobular #10
• Nr 4, Art Nr, Y46F98060 Body Cover, Left, und Fixing Bolts, Hexalobular #10
• Nr 5, Art Nr, Y42498220 SM-SH51 Cleat Set, Single Release Mode / Pair
• Nr 5, Art Nr, Y41S98092 SM-SH56 Cleat Set, Multiple Release Mode / Pair
• Nr 6, Art Nr, Y42498201 SM-SH51 Cleat Set w/o Cleat Nut, Single Release Mode / Pair
• Nr 6, Art Nr, Y41S98100 SM-SH56 Cleat Set w/o Cleat Nut, Multiple Release Mode / Pair
• Nr 7, Art Nr, Y41704030 Cleat Fixing Bolt, 1 pc.
• Nr 8, Art Nr, Y42423000 Cleat Adapter, 1 pc., A
• Nr 9, Art Nr, YL0E04000 Cleat Nut, 1 pc., A
• Nr10,Art Nr, Y40Z98010 SM-PD60 Reflector Unit, Pair/Option, A
• Nr10,Art Nr, Y40Z98020 SM-PD60 Reflector Unit, AS/Pair/Option, A

Shimano XTR PD-M9020 Pedale Ersatzteile:

• Nr 1, Art Nr,Y46X98050 Pedal Axle Assembly, Right / B.C.9/16 x 20T.P.I
• Nr 1, Art Nr,Y46X98020 Pedal Axle Assembly, Left / B.C.9/16 x 20T.P.I.
• Nr 2, Art Nr,Y46X98030 Lock Bolt, Right
• Nr 2, Art Nr,Y46X98040 Lock Bolt, Left
• Nr 3, Art Nr,Y41N98030 Steel Ball, 3/32, 62 pcs.
• Nr 4, Art Nr,Y46F98050 Body Cover, Right, und Fixing Bolts, Hexalobular #10
• Nr 4, Art Nr,Y46F98060 Body Cover, Left, und Fixing Bolts, Hexalobular #10
• Nr 5, Art Nr,Y42498220 SM-SH51 Cleat Set, Single Release Mode / Pair
• Nr 5, Art Nr,Y41S98092 SM-SH56 Cleat Set, Multiple Release Mode / Pair
• Nr 6, Art Nr,Y42498201 SM-SH51 Cleat Set w/o Cleat Nut, Single Release Mode / Pair
• Nr 6, Art Nr,Y41S98100 SM-SH56 Cleat Set w/o Cleat Nut, Multiple Release Mode / Pair
• Nr 7, Art Nr,Y41704030 Cleat Fixing Bolt, 1 pc.
• Nr 8, Art Nr,Y42423000 Cleat Adapter, 1 pc.
• Nr 9, Art Nr,YL0E04000 Cleat Nut, 1 pc.
• Nr10,Art Nr,Y40Z98010 SM-PD60 Reflector Unit, Pair/Option
• Nr10,Art Nr,Y40Z98020 SM-PD60 Reflector Unit, AS/Pair/Option

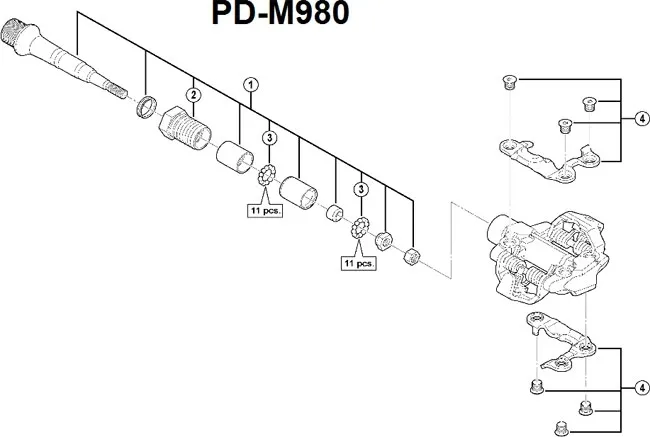

Aufstandsplatte linksmit Befestigungsschrauben für das XTR PD-M980, PD-M9000, PDM9020, Body Cover, left, und Fixing Bolts, Hexalobular #10, Nr 4

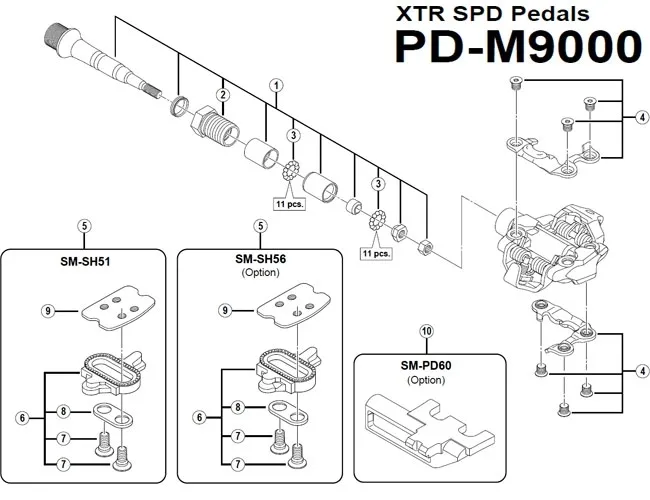

Shimano XTR PD-M9000 Pedale Ersatzteile:

• Nr 1, Art Nr, Y46X98050 Pedal Axle Assembly, Right / B.C.9/16 x 20T.P.I.
• Nr 1, Art Nr, Y46X98020 Pedal Axle Assembly, Left / B.C.9/16 x 20T.P.I.
• Nr 2, Art Nr, Y46X98030 Lock Bolt, Right
• Nr 2, Art Nr, Y46X98040 Lock Bolt, Left
• Nr 3, Art Nr, Y41N98030 Steel Ball, 3/32, 62 pcs.
• Nr 4, Art Nr, Y46F98050 Body Cover, Right, und Fixing Bolts, Hexalobular #10
• Nr 4, Art Nr, Y46F98060 Body Cover, Left, und Fixing Bolts, Hexalobular #10
• Nr 5, Art Nr, Y42498220 SM-SH51 Cleat Set, Single Release Mode / Pair
• Nr 5, Art Nr, Y41S98092 SM-SH56 Cleat Set, Multiple Release Mode / Pair
• Nr 6, Art Nr, Y42498201 SM-SH51 Cleat Set w/o Cleat Nut, Single Release Mode / Pair
• Nr 6, Art Nr, Y41S98100 SM-SH56 Cleat Set w/o Cleat Nut, Multiple Release Mode / Pair
• Nr 7, Art Nr, Y41704030 Cleat Fixing Bolt, 1 pc.
• Nr 8, Art Nr, Y42423000 Cleat Adapter, 1 pc., A
• Nr 9, Art Nr, YL0E04000 Cleat Nut, 1 pc., A
• Nr10,Art Nr, Y40Z98010 SM-PD60 Reflector Unit, Pair/Option, A
• Nr10,Art Nr, Y40Z98020 SM-PD60 Reflector Unit, AS/Pair/Option, A

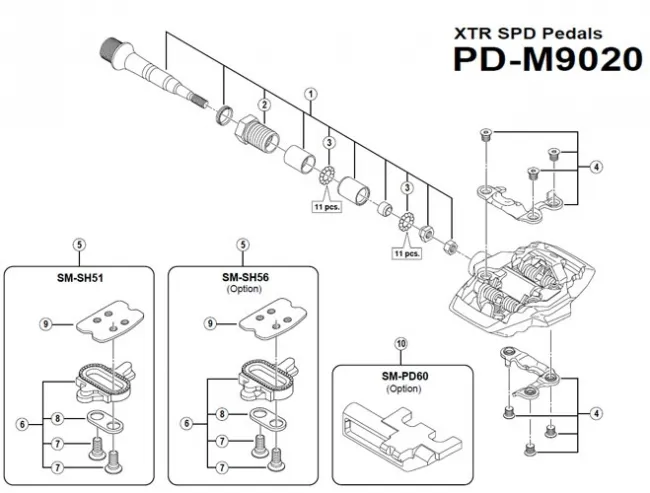

Shimano XTR PD-M9020 Pedale Ersatzteile:

• Nr 1, Art Nr,Y46X98050 Pedal Axle Assembly, Right / B.C.9/16 x 20T.P.I
• Nr 1, Art Nr,Y46X98020 Pedal Axle Assembly, Left / B.C.9/16 x 20T.P.I.
• Nr 2, Art Nr,Y46X98030 Lock Bolt, Right
• Nr 2, Art Nr,Y46X98040 Lock Bolt, Left
• Nr 3, Art Nr,Y41N98030 Steel Ball, 3/32, 62 pcs.
• Nr 4, Art Nr,Y46F98050 Body Cover, Right, und Fixing Bolts, Hexalobular #10
• Nr 4, Art Nr,Y46F98060 Body Cover, Left, und Fixing Bolts, Hexalobular #10
• Nr 5, Art Nr,Y42498220 SM-SH51 Cleat Set, Single Release Mode / Pair
• Nr 5, Art Nr,Y41S98092 SM-SH56 Cleat Set, Multiple Release Mode / Pair
• Nr 6, Art Nr,Y42498201 SM-SH51 Cleat Set w/o Cleat Nut, Single Release Mode / Pair
• Nr 6, Art Nr,Y41S98100 SM-SH56 Cleat Set w/o Cleat Nut, Multiple Release Mode / Pair
• Nr 7, Art Nr,Y41704030 Cleat Fixing Bolt, 1 pc.
• Nr 8, Art Nr,Y42423000 Cleat Adapter, 1 pc.
• Nr 9, Art Nr,YL0E04000 Cleat Nut, 1 pc.
• Nr10,Art Nr,Y40Z98010 SM-PD60 Reflector Unit, Pair/Option
• Nr10,Art Nr,Y40Z98020 SM-PD60 Reflector Unit, AS/Pair/Option

Herstellerinformation: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com | Kontakt EU: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, The Netherlands, www.shimano.com
